CMSI 2120

Lecture 13-1 - Hell Hash No Fury...

23 min read

It’s time to revisit a favorite operation of ours: membership search.

Question

What is the definition of membership search operations? What are their purposes?

Question

In what data structures have we seen the membership search operation applied, and what computational guarantees did they provide?

Remark

Now for the tantalizing question… can we do better, and if so, what is the cost that we pay?

Andrew’s World Famous Supermarket Analogy

This part of the lecture must begin, by tradition, with Andrew’s Famous Supermarket Analogy.

Not only will this give us some intuition for what follows, but also provides a roadmap for what we can endeavor to implement in what has sometimes been heralded as the data structure to end all data structures!

Story time! Let’s consider that we’re in a supermarket looking for our favorite breakfast food: hash browns.

Now, we haven’t been to this particular supermarket before, so the layout may not be intuitive, and in particular, we may not know where to find that crunchy, delicious treat.

Question

Suppose we wander aimlessly down each row in sequence looking for hash browns until we find them. What is the computational complexity of this operation in terms of n, the number of products in the supermarket?

This is generally the approach I like to take, since I’ll usually find other snacks along the way that I want to add to my cart.

Question

However, if we’re in a hurry, is there an easier way to find the exact location of the hash browns?

Question

What is the computational complexity of this alternative approach, again in terms of n, the number of products in the supermarket?

Wow! Constant time lookup, that’s impressive!

Question

If you are a store employee who knows the locations of every product and what is meant to go in each section, with what complexity can you add new items to the shelves?

AND constant time insertion?! Can we get supermarket employees to manage our data structures for us?!

More on that in a moment…

Maps & Dictionaries

Remark

Before considering the implementation, we should note that the Supermarket example has presented us with a new data type since we have Products that correspond to their store Location.

These are generally referred to as maps / dictionaries:

Question

Before looking at a single definition, when you hear the words “Map” and “Dictionary,” what do these objects share in common outside of the programmatic context?

First, let’s think about some real-world examples:

CollectionKeyValue
Webster’s DictionaryWordsDefinitions
Degree WorksStudent IDTranscripts

Definition

Maps / Dictionaries are ADTs that represent collections of elements consisting of some value that corresponds (i.e., maps) to a unique key.

Toolkit

Generally, keys are simple, unique identifiers used to quickly map to more complex values.

You’ve probably already used these data types in JavaScript objects or Python dict()s, but today we’ll take a look under the hood at some implementation details.

Question

Funny enough, the idea of a Map with its unique keys is really just a more general data type of one we’ve already seen; what is it?

So, with that intuition in mind, let’s think about how to implement a Map, inspired by our Supermarket analogy.

Hash Tables

Definition

A hash table is a data structure useful for implementing the Map and Set ADTs by using an array of buckets to store its values where each bucket index corresponds to a functional mapping from each value’s unique key.

Toolkit

Because some keys are not numeric (and therefore lack a direct translation to an index), we define hashCodes that produce a semi-unique index pertaining to each object’s fields / properties / characteristics.

Definition

A hash function, f provides the index of a value’s bucket corresponding to its key such that f(key(val)) = index.

Definition

Just how the buckets are arranged or arrange the data they contain depends on what’s called the hashing scehma.

Definition

In a separate chaining schema, buckets are other data structures that hold the table’s values (e.g., LinkedLists), while in an open addressing schema, the buckets hold the values themselves.

We’ll look at the differences between these two schemas shortly… in the meantime, let’s make sure the analogy is completely concrete…

Question

Complete the following analogies based on our supermarket example with employees being “oracles” that can be consulted to find items in aisles of the market.

  • Supermarket = ?
  • Aisle = ?
  • Product = ?
  • Employee = ?

See how masterful that example was?

We’ll look more at hash functions later, for now, let’s consider some simple examples to make the above more concrete.

Operations

Let’s talk about the basic operations of a hash table:

Definition

Insertion in a hash table follows a basic recipe:

  1. Step 1: acquire the index of the bucket corresponding to the added value’s key using the key’s hash function.

  2. Step 2: determine if the key has already been stored at the bucket at the index found in Step 1.

  3. Step 3: if the key is new, insert* the key-value pair at that bucket; if it’s not, simply update the value corresponding to that key.

  • Just how this search is done depends on if we have a separate chaining vs. open addressing hash table, to be discussed shortly.

Example

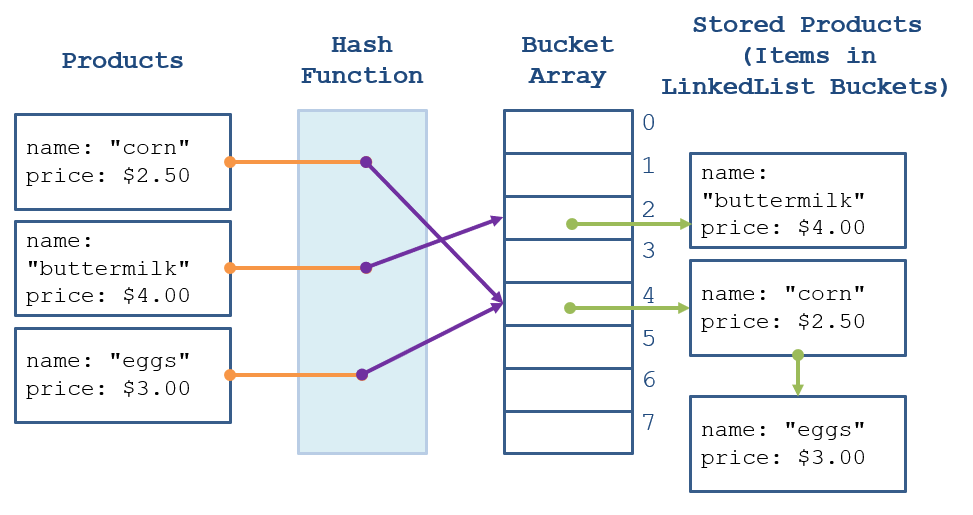

Suppose we wish to store Products that have a unique name (the key) and map to some price values. Let’s draw the HashTable with the following properties:

  • Keys/Values: Keys are product names (Strings), values will be the product prices (doubles).
  • Buckets [separate-chaining]: buckets are an array of LinkedLists, and begin with a cacity of 8 buckets (Let (b = 8)).
  • Hash Function: For Product name x (a String), we have: f(x) = x.length() % b (Note: we need to mod by (b), the number of buckets, so that we will always have a valid index from among those in our buckets).

Some notes on the above:

  • Note how both “corn” and “eggs” have the same number of characters, and so hash to the same bucket (4) — this is known as a collision and is generally something we want to avoid when possible, but deal with as it will inevitably come up.
  • In this Separate Chaining Hashing Schema, the buckets are LinkedLists that store the individual items. As such, when any collision happens, we simply append the new item to the existing List at that bucket.
  • Note how “buttermilk” contained more characters than there were buckets, so we took its hashed value and modded by the number of buckets to wrap around back to the 2 index.

Definition

Membership Search / Value Retrieval follow the same steps 1 + 2 as insertion, except instead of inserting / updating a value in Step 3, we return the value associated with the key if it exists.

Example

Try querying the map in the example above for the keys "apple", "pear", and "corn".

Entries

Let’s think a bit about the implementation of the picture we’ve drawn above, starting with the objects containing our key and value.

Just like LinkedLists / Trees had Nodes in order to store and organize their data, so too do HashTables!

Definition

An Entry object is a basic node storing both key and value with the following behaviors:

Toolkit

The equals behavior must be overridden to compare equivalence of keys.

Question

Why is this necessary if keys are unique?

Toolkit

The hashCode behavior must be overridden to produce a semi-unique index corresponding to the key’s hashCode.

Finally, we see that hashCode method I’d promised to explain many moons ago!

You might remember an additional property I reminded us all of:

Question

Because Entries employ the equals and hashCode methods of their stored keys (potentially any data type), why did we say that any time we overrode equals that we also overrode hashCode from the Object class’ implementation?

This is a bit harder to interpret with simple String keys, but is necessary for more sophisticated data types used as keys.

Toolkit

Note: if an Entry’s key and value are the same thing, this is how we can use a HashTable to also implement a Set!

Performance Analysis

Now that we’ve seen a couple of examples, let’s consider the performance cases for Hash Tables:

Question

What is the best case of Hash Table insertion / lookup? What are the scenarios that would lead to this behavior?

Example

Sketch a picture of what this best case would look like!

Question

What is the worst case of Hash Table insertion / lookup? What are the scenarios that would lead to this behavior?

Example

Sketch a picture of what this worst case would look like!

Remark

It seems, then, that a lot of how these best and worst cases are characterized relies on the chosen Hash Function — let’s take a look at how to design these next!

Hash Functions

Now that we’ve seen hash tables in their basic format, let’s talk about how hash functions work.

Recall that hash functions return an integer index corresponding to some characteristics of a given type.

Hash Function Basics

Example

Suppose we are designing the String class’ hashCode method. What are some ways you might construct such a function?

Let’s consider a simple hash function that simply returns the number of letters in the given string to an int; it might look something like this.

@Override
public int hashCode () {
    return this.length();
}

Question

As simple as it is, what’s wrong with the hash function we designed above?

This would be like having 1 row in our whole supermarket and then whenever we ask where something is, the employee tells us “row 1 bro.” Useless!

As such, one of the chief traits we want to try to equip our hashCodes with is uniformity: the idea that different keys get very different values.

Toolkit

Desirable Trait 1 - Uniform Distribution: Collisions are undesirable, therefore, a good hash function should uniformly distribute hashed keys among buckets.

Avoid collisions you say! Alrighty, how about the following hash function:

@Override
public int hashCode () {
    return (this.length() * Math.random());
}

Question

What is wrong with the above hash function?

Toolkit

Desirable Trait 2 - Consistency: A hash function for which f(key) = i should always hash the same key to the same index i.

This makes sense, intuitively; if you asked our supermarket employee which row the cookies were in twice, you wouldn’t expect them to change their answer!

And lastly, although it might go without saying…

Toolkit

Desirable Trait 3 - Speed: A hash function should quickly and efficiently compute its hash value, because (almost) every operation a hash table performs always starts with the hash function.

Remark

Note: generally, since the number N of items stored in a hash table will be huge compared to the size of a single item, k, it’s fine if our hash function has some tolerable cost that is some function of k.

In other words, don’t make your hash function compute π to the billionth digit every time it’s called, and then use that result to avoid collisions.

Remark

Hashing any key will take some time, but that time is a function of the key (small), not the number of items in the collection (huge).

Example

Consider then: what would be a good way to combine all of the above properties for a

// ...for some String object's field:
// char[] chars; // holds individual characters in String
@Override
public int hashCode () {
    int code = 0;
    for (int i = 0; i < this.chars.length; i++) {
        code = 31 * code + this.chars[i];
    }
    return code;
}

Some notes on the above:

  • The above exploits the uniqueness of a String based on the integer character codes of its composing chars.
  • What’s with the multiplication by 31? Fans of Baskin Robbins? No, turns out that in cryptography and its accompanying statistics, multiplying a code by a prime number will increase its chances of being unique.
  • Won’t the above eventually experience integer overflow? Yes! Turns out though that negative hashCodes are just fine — simply take the absolute value when you need to map them to a bucket index.
  • Wouldn’t this needlessly compute the same code many times over? Yes, so in a better implementation, we would compute the hashCode once on demand, and then store its result in a field.

Remark

A wide swath of research has investigated the best hashing methods to avoid collisions, which are outside of the scope for this introduction, so we won’t detail more traits herein.

Example

Still, you can try out Java’s hashCodes for any object — see what you get for the following!

System.out.println("a".hashCode());
System.out.println("b".hashCode());
System.out.println("hash brown".hashCode());
System.out.println("hash brown".hashCode());

Hidden on the original page

The section below was commented out of the Fall 2021 course notes, so students never saw it. It is preserved here because the material is complete and usable.

Hashing Schemas

Definition

Hashing schemas decide how values will be stored in the hash table’s buckets.

Toolkit

In a separate chaining scheme, buckets are data structures (usually linked lists or BSTs) that hold the hash table’s values.

Toolkit

In an open addressing scheme, the buckets hold the values themselves.

The main difference: how each deals with collisions.

Separate Chaining

Definition

Separate chaining tables deal with collisions by simply inserting colliding items into the DS at each bucket.

In the case of linked lists, we can simply prepend items; in the case of BSTs, we follow the traditional BST insertion algorithm.

Example

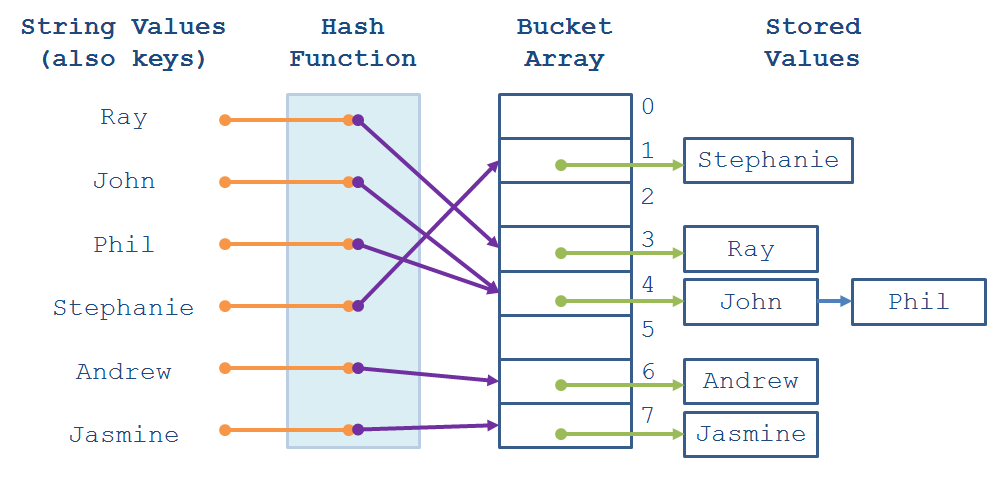

We already saw examples of separate chaining with linked list buckets in the above section, but here one is again for comparison.

Open Addressing

Definition

Open addressing tables deal with collisions by hashing a value to its corresponding bucket, and then searching linearly down the buckets for the first opening.

The idea is that, with a sufficiently large hash table and decent hash function, we can avoid the space overhead of additional data structures that separate chaining has.

Example

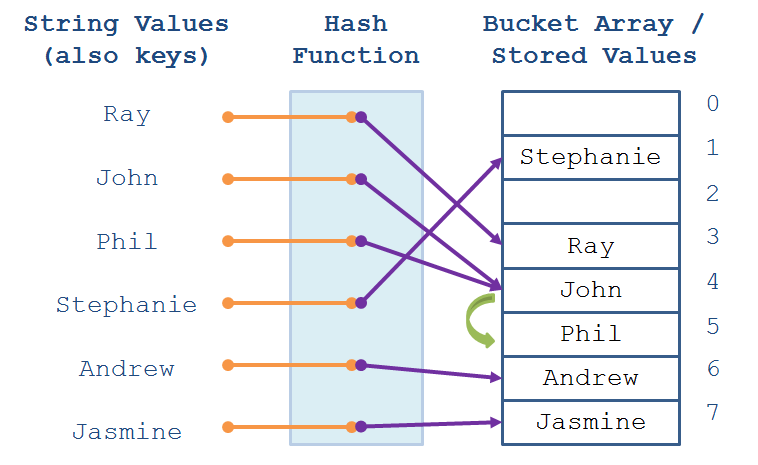

Let’s look at the same values as the above example, but with an open addressing schema instead.

Bottom line: separate chaining is generally the preferred method when space isn’t a concern, but more memory-conscious applications might employ an open addressing schema instead.

Analyzing Hash Tables

Before we conclude our discussion on hash tables, we have two analytic points to cover:

Ensuring Constant Time Insertion / Lookup

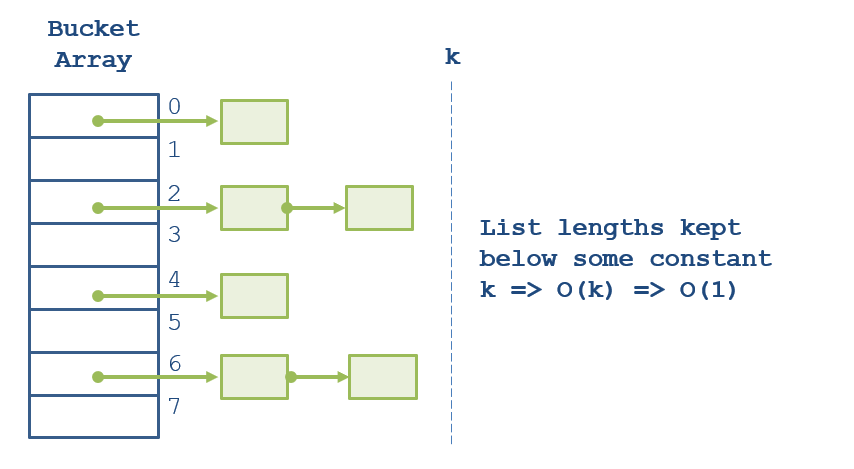

One question you might ask: if our hash table is aiming for O(1) insertion and lookup, how can we guarantee this performance if we have a lot of collisions?

Question

We’ve already seen that designing a good hash function is necessary to reduce collisions… but even the best hash function won’t be particularly useful if we lack what else?

As such, reducing collisions is really a 2-part process:

  1. Design good hash functions that we gain some theoretical guarantees of evenly distributing the values.
  2. Maintain a healthy load factor.

Definition

A hash table’s load factor (L) is the ratio of items (n) to buckets (b), expressed as: L = n / b

Toolkit

Empirically, a good load factor is kept below 0.75, which (if maintained and a good hash function is designed) leads to the following picture:

Generally speaking, a low load factor may not indicate a good hash table; for instance, we might have 100 items stored in 1 of 200 buckets, but the load factor will still be below 0.7.

Indeed, the best hash functions maintain buckets with fewer than 3 elements.

However, assuming a good hash function, a high load factor generally means that we’re taxing the high performance guarantees of our hash table (there are too few buckets to accommodate so many values).

Question

How can we ensure a healthy load factor when it starts to grow past some threshhold like 0.7?

Question

Assuming a well-formed hash function, how does the “fix” suggested above keep insertion / lookup at constant time?

Hash Table Use Cases

So what are the pros and cons of hash tables?

Toolkit

[Pros] With the guarantees above, HashTables boast the fastest O(1) insertion + lookup behavior for Sets and Maps!

Toolkit

[Cons] Memory intenseive to maintain a good load factor, and we lose any guarantee of sorted ordering that a BinarySearchTree implementation could maintain.

Implementation

Just to see all of the moving pieces in action, let’s consider a small example from our SuperMarker analogy!

Example

Create a small mock HashTable implementation of a Map in which String productNames [keys] are mapped to their associated double prices.

Here’s a simple implementation we’ll work on together in class!

package pricescan;

import java.util.*;

public class ProductPriceHash {

    // Constants
    // ----------------------------------------------------------------------------
    private static final int START_SIZE = 8;

    // Fields
    // ----------------------------------------------------------------------------
    private LinkedList<Entry>[] buckets;
    private int size;

    // Constructor
    // ----------------------------------------------------------------------------

    /**
     * Creates a new ProductPriceHash with the given START_SIZE number of buckets
     */
    public ProductPriceHash () {
        this.buckets = new LinkedList[START_SIZE];
        this.size = 0;
        for (int i = 0; i < buckets.length; i++) {
            this.buckets[i] = new LinkedList<Entry>();
        }
    }

    // Public Methods
    // ----------------------------------------------------------------------------

    /**
     * Returns the number of unique key-value pairs stored in this ProductPriceHash
     * @return The number of unique key-values pairs stored within
     */
    public int size () {
        return this.size;
    }

    /**
     * Associates the given productName with its corresponding price
     * @param productName [Key] Name of the product to price
     * @param productPrice [Value] Price of the product
     */
    public void put (String productName, double productPrice) {
        LinkedList<Entry> targetBucket = this.buckets[this.getBucketIndex(productName)];
        Entry newEntry = new Entry(productName, productPrice);
        boolean duplicate = targetBucket.remove(newEntry);
        targetBucket.add(newEntry);
        if (!duplicate) {
            this.size++;
        }
    }

    /**
     * Returns the price associated with the given productName, or throws
     * an IllegalArgumentException if the key does not exist
     * @param productName [Key] Name of the product for which to query the table
     * @throws IllegalArgumentException
     * @return
     */
    public double getPrice (String productName) {
        LinkedList<Entry> targetBucket = this.buckets[this.getBucketIndex(productName)];
        ListIterator<Entry> it = targetBucket.listIterator();
        while (it.hasNext()) {
            Entry current = it.next();
            if (current.name.equals(productName)) {
                return current.price;
            }
        }

        throw new IllegalArgumentException("Key does not exist in this table!");
    }

    // Private Helper Methods
    // ----------------------------------------------------------------------------

    /**
     * Returns the index corresponding to the given productName in the Table
     * @param productName productName to search for in the Table
     * @return The index in the range of [0, # of buckets - 1]
     */
    private int getBucketIndex (String productName) {
        int rawHash = productName.hashCode();
        return Math.abs(rawHash) % this.buckets.length;
    }

    // Private Inner Class
    // ----------------------------------------------------------------------------

    // [!] Note: in some implementations, this is a public inner class and can be
    // accessed / interacted-with by the user (Java's makes this public)
    private class Entry {

        String name;
        double price;

        Entry (String n, double p) {
            this.name = n;
            this.price = p;
        }

        @Override
        public boolean equals (Object other) {
            if (this.getClass() != other.getClass()) {
                return false;
            }
            Entry otherEntry = (Entry) other;
            return this.name.equals(otherEntry.name);
        }

        @Override
        public int hashCode () {
            return this.name.hashCode();
        }

    }

    // Small Test
    // ----------------------------------------------------------------------------

    public static void main (String[] args) {
        ProductPriceHash pr = new ProductPriceHash();
        pr.put("Apples", 3.50);
        pr.put("Pears", 2.50);
        pr.put("Dragonfruit", 10.00);
        System.out.println(pr.size()); // 3
        pr.put("Pears", 4.50); // Note: duplicate key overwrites previous!
        System.out.println(pr.size()); // Still 3!
        System.out.println(pr.getPrice("Apples")); // 3.50
        System.out.println(pr.getPrice("Pears"));  // 4.50

        // Try querying for a key not stored within...
        try {
            System.out.println(pr.getPrice("Guava"));
        } catch (Exception e) {
            System.out.println(e);
        }
    }

}

Nifty! That gives us a pretty good picture for everything going on inside of a HashTable, but let’s just get some sanity tests here…

Remark

Suppose, erroneously, we replaced our hash function with one that only returned a single bucket at index 0 — let’s clone our implementation above and then replace its getBucketIndex method with the following:

// ...
private int getBucketIndex (String productName) {
    return 0;
}
// ...

Let’s see what the damage is from doing the above with a little test:

package pricescan;

import static org.junit.Assert.*;
import org.junit.Test;

public class ProductPriceHashComparison {

    static final int TEST_SIZE = 40000;

    @Test
    public void goodHashTest() {
        ProductPriceHash pr = new ProductPriceHash();
        for (int i = 0; i < TEST_SIZE; i++) {
            pr.put("" + i, i);
        }
        for (int i = 0; i < TEST_SIZE; i++) {
            pr.getPrice("" + i);
        }
    }

    @Test
    public void badHashTest() {
        BadProductPriceHash pr = new BadProductPriceHash();
        for (int i = 0; i < TEST_SIZE; i++) {
            pr.put("" + i, i);
        }
        for (int i = 0; i < TEST_SIZE; i++) {
            pr.getPrice("" + i);
        }
    }

}

Notice how much more poorly the bad hash function performs compared to the good one… but yet…

Question

Our original ProductPriceHash is still underperforming a bit… what did we forget to do?

Example

Left as a very highly suggested exercise: implement a checkAndGrow method to dynamically grow our bucket list (lol) as the Load Factor becomes larger than 0.75!

JCF Maps + Sets

Toolkit

Java offers its own HashMap class, whose documentation you can find in the following link: [Open Addressing] HashMap

Toolkit

Like most JCF classes, HashMaps are generics that must be constructed with given types for its keys and values, as specified using the generic syntax: <Key, Value>.

Example

Here’s a simple example, as listed on the above documentation:

// Hashtable storing String keys with Integer values
// HashMap<KeyType, ValType>
HashMap<String, Integer> numbers = new HashMap<String, Integer>();

// Store several values mapped to corresponding keys
// numbers.put(key, value);
numbers.put("one", 1);
numbers.put("two", 2);
numbers.put("three", 3);

// Retrieve them too!
System.out.println(numbers.get("two")); // prints: 2

Toolkit

There’s also HashSets, as we discussed implementing above!

HashSet<String> seti = new HashSet<>();
seti.add("bump");
seti.add("set");
seti.add("spike");
System.out.println(seti.contains("set"));   // true
System.out.println(seti.contains("pass"));  // false

BSTs vs. HashTables

Toolkit

Note that there are both TreeSet and TreeMap collections for Binary Search Tree implementations of Sets and Maps, respectively!

Example

Consider our membership test example from the BST lectures wherein now, we pit our HashSets against TreeSets. These are some pretty good data structures for membership tests, so let’s up the ante a bit… and insert… 10-million items!

public class SetTests {

    private static int TEST_SIZE = 10000000;

    @Test
    public void testHashSetMembership () {
        HashSet<Integer> hashy = new HashSet<>();
        for (int i = 0; i < TEST_SIZE; i++) {
            // [!] Adding i to HashTable
            hashy.add(i);
        }
        for (int i = 0; i < TEST_SIZE; i++) {
            // [!] Membership tests
            hashy.contains(i);
        }
    }

    @Test
    public void testTreeSetMembership() {
        TreeSet<Integer> ts = new TreeSet<>();
        for (int i = 0; i < TEST_SIZE; i++) {
            // [!] Adding i to BinarySearchTree
            ts.add(i);
        }
        for (int i = 0; i < TEST_SIZE; i++) {
            // [!] Membership tests
            ts.contains(i);
        }
    }

}

Question

If HashTables provide such quick lookup, what benefits are there to using BinarySearchTree Sets and Maps?

Example

Observe the order in which items are printed out by iterating over the contents of a Hash vs. TreeSet (you might have to run it a few times to see that HashSets do not iterate over items in sorted order like TreeSets always will).

private static int TEST_SIZE = 20;

public static void main (String[] args) {
    HashSet<Integer> hashy = new HashSet<>();
    TreeSet<Integer> treey = new TreeSet<>();
    for (int i = 0; i < TEST_SIZE; i++) {
        int item = (int) (TEST_SIZE * Math.random());
        hashy.add(item);
        treey.add(item);
    }

    System.out.println("============ PRINTING HASH SET CONTENTS ============");
    for (int item : hashy) {
        System.out.println(item);
    }
    System.out.println("============ PRINTING TREE SET CONTENTS ============");
    for (int item : treey) {
        System.out.println(item);
    }
}

Graph View

Backlinks
